Price Chart Types

In the example below, you can explore different price chart types and how to create them using the LightningChart Python Trader. Full code and dataset are provided at the bottom of the page.

Download example dataset

from lightningchart_trader import TAChart

LICENSE_KEY_PATH = "license_key.txt"
DATA_PATH = "Tesla.csv"

# Load the license key
license_key = open(LICENSE_KEY_PATH).read()

# Defining chart types
chart_types = [

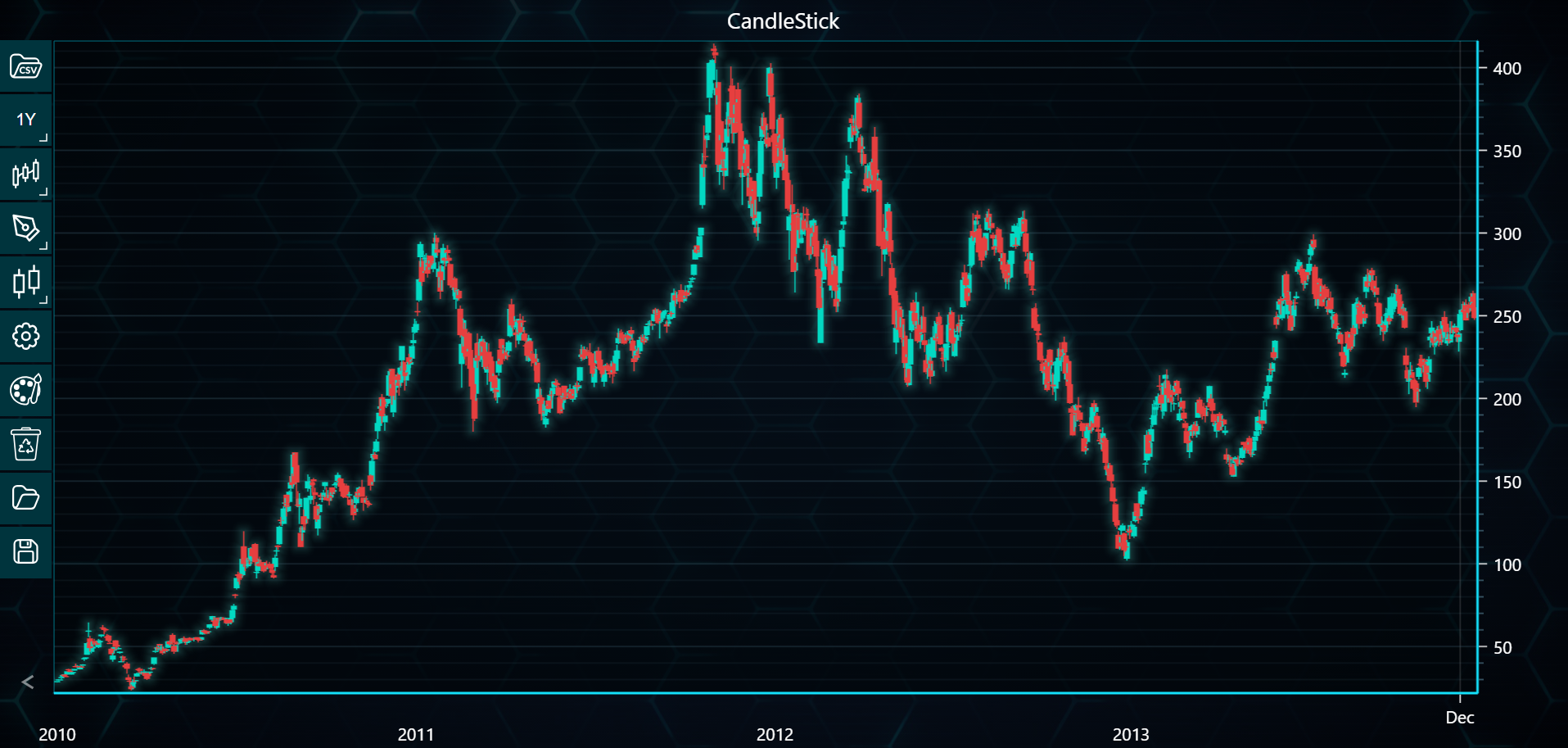

    "CandleStick",

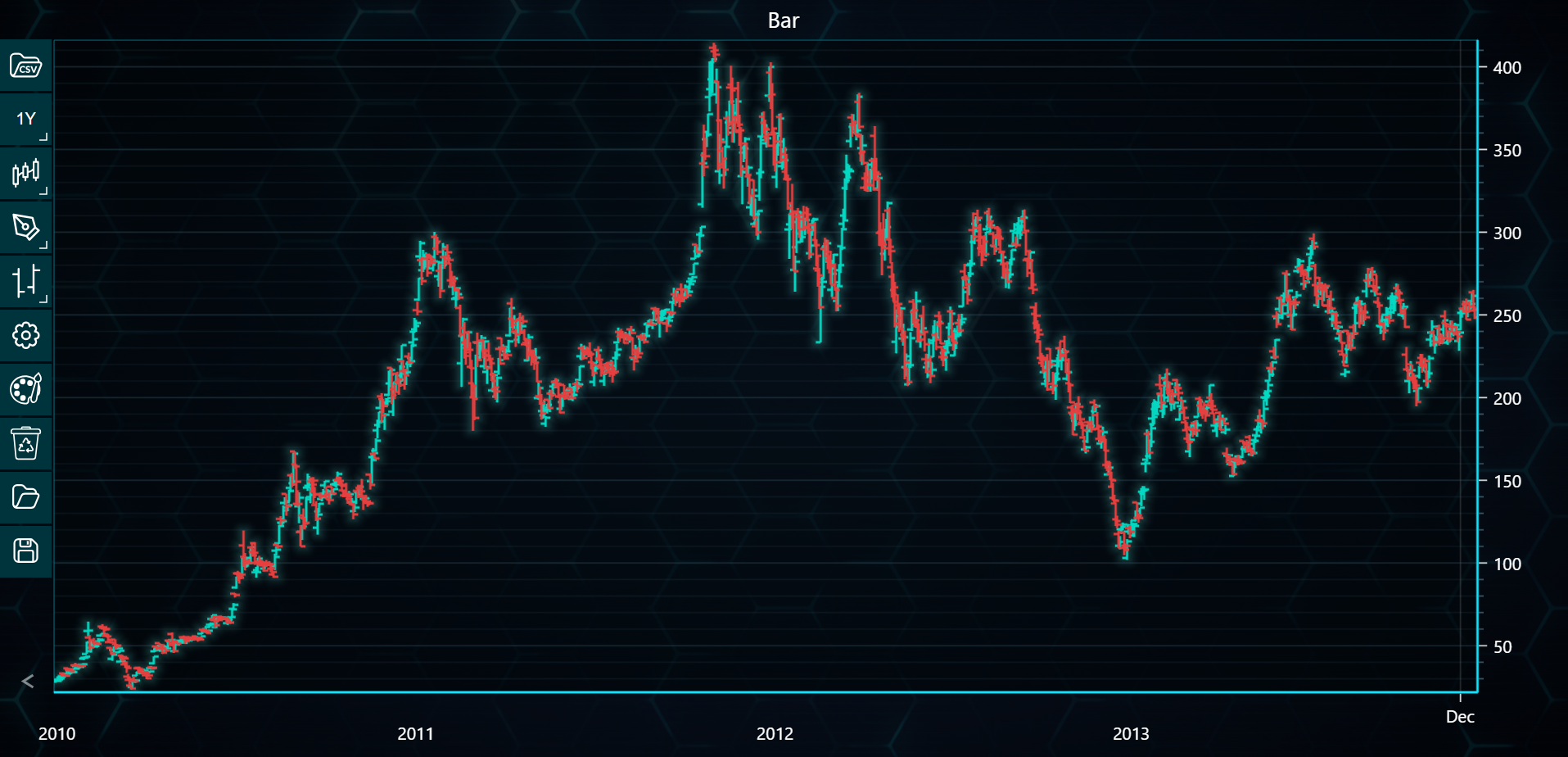

    "Bar",

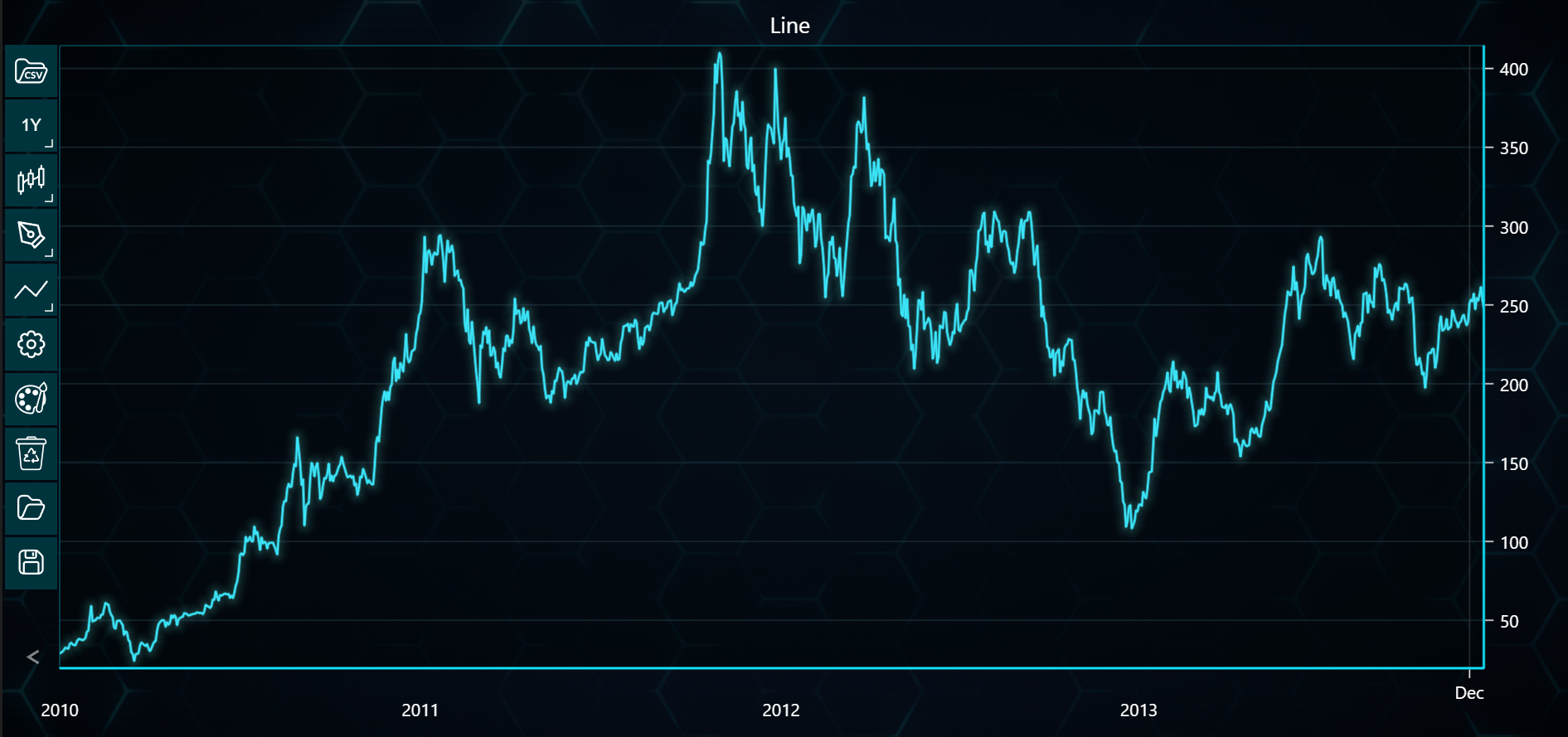

    "Line",

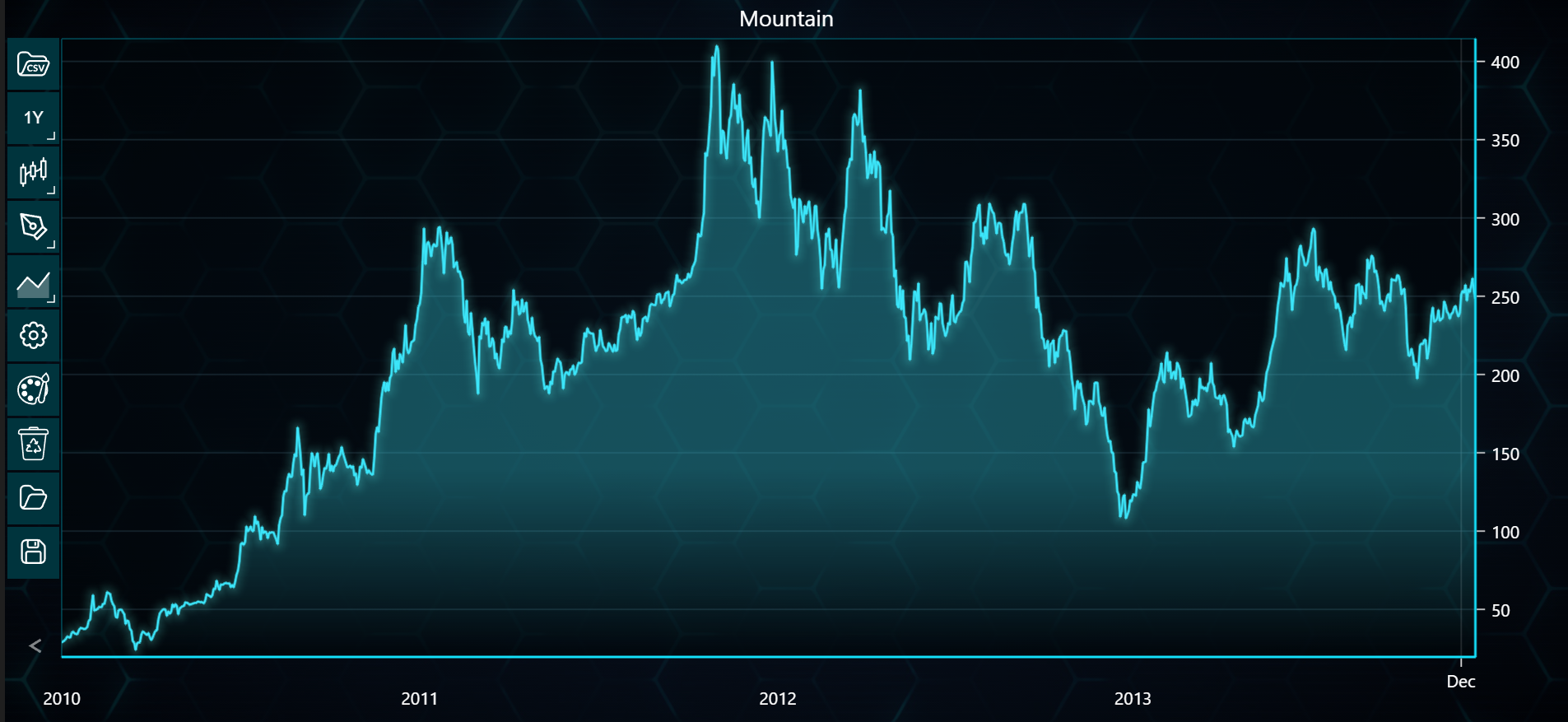

    "Mountain",

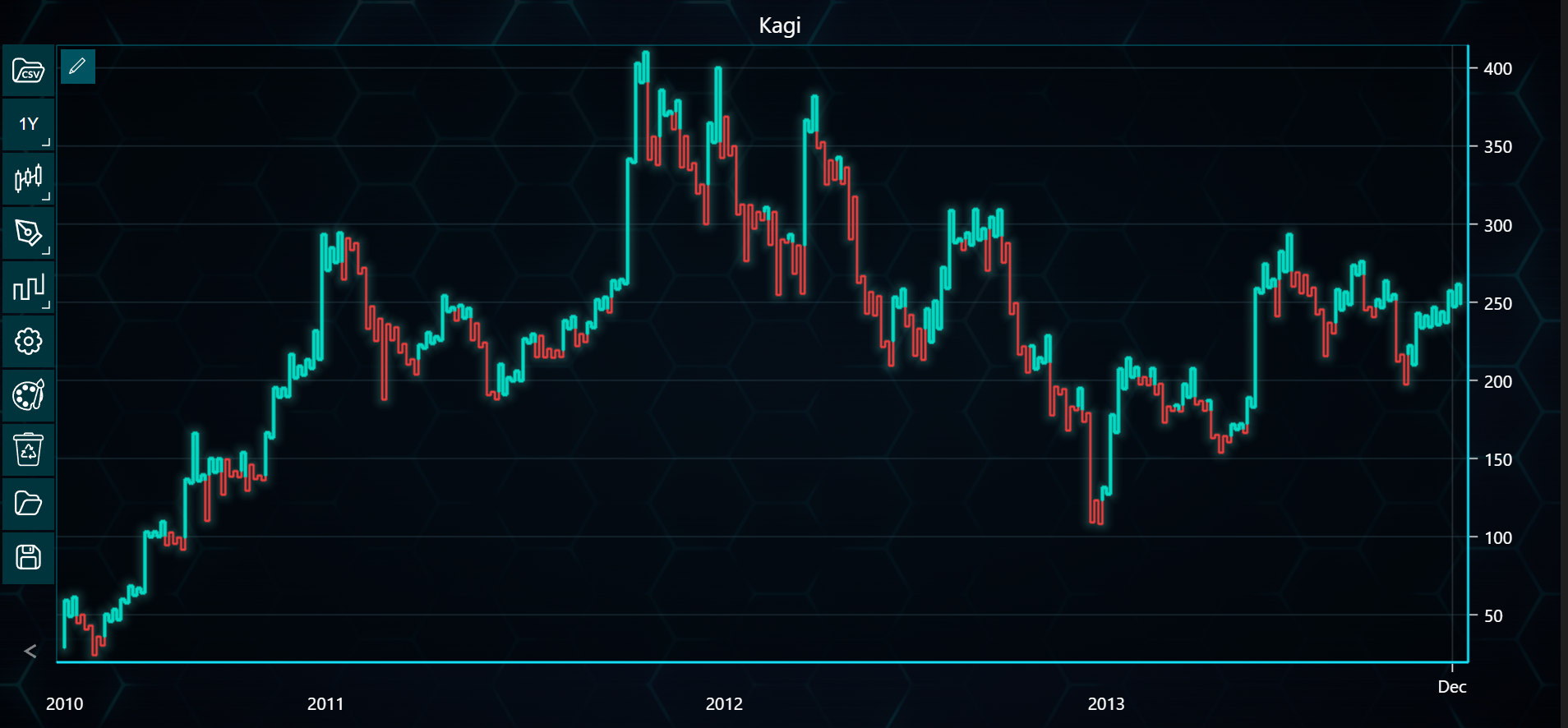

    "Kagi",

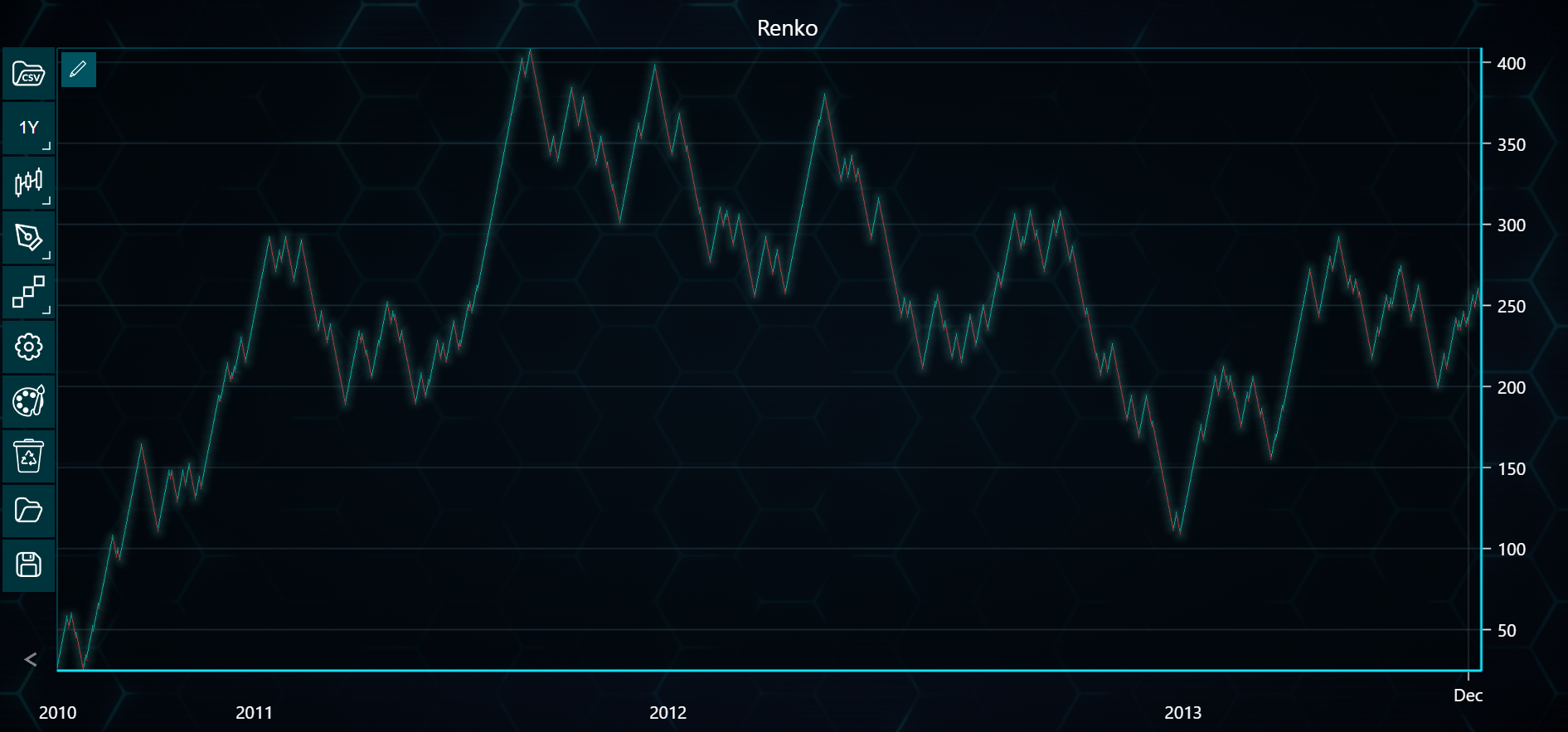

    "Renko",
    "HeikinAshi",

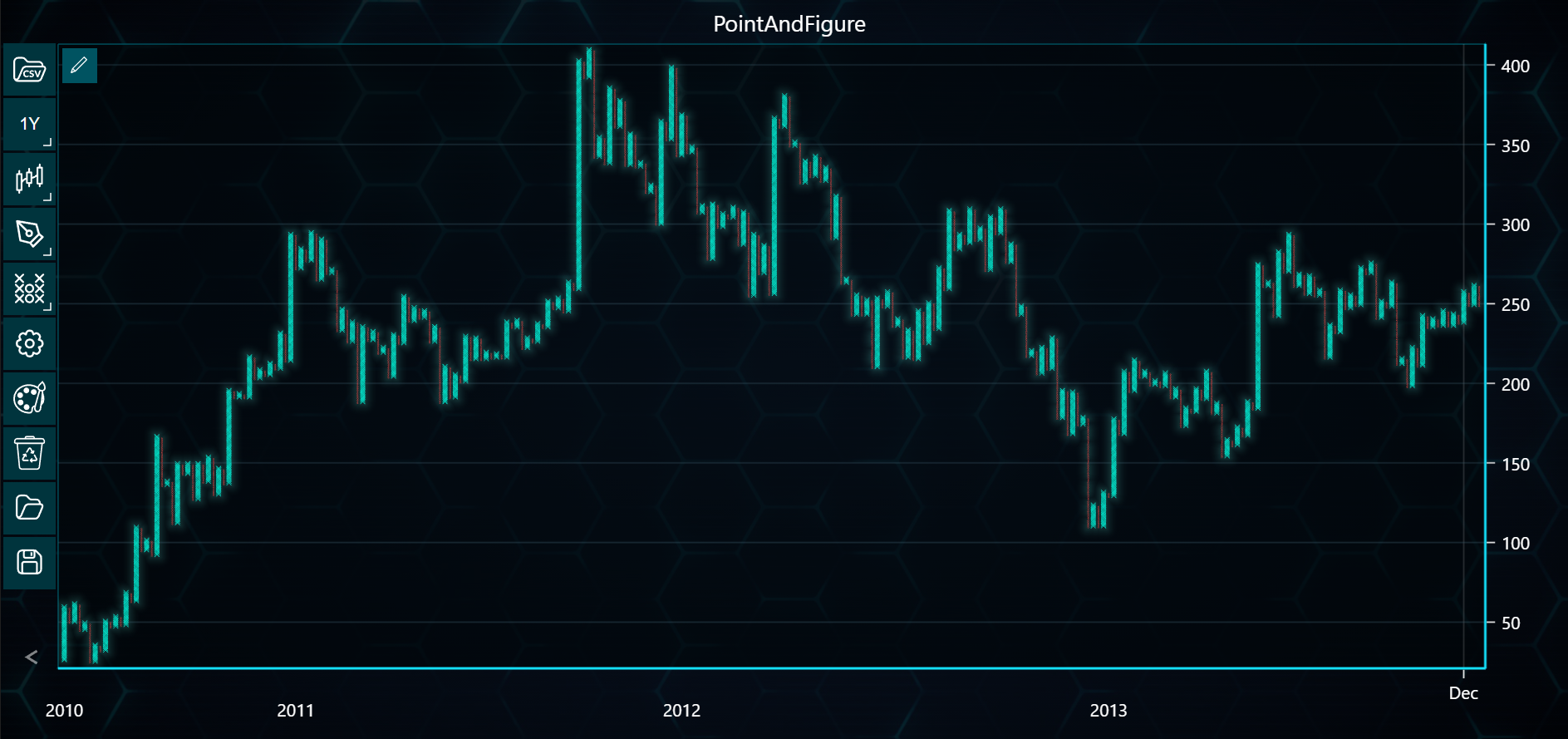

    "PointAndFigure",
]

# List to hold chart instances for each chart
charts = []

# Open all charts and store them in variables
for chart_type in chart_types:
    chart = TAChart(license_key=license_key)
    chart.load_csv(csv=DATA_PATH, dataset_name="Tesla Data")
    chart.set_price_chart_type(chart_type)
    chart.set_chart_title(chart_type)
    charts.append(chart)

# Open charts
for chart in charts:
    chart.open()
