%pip install numpy pandas lightningchart

# Import necessary libraries (load pandas library to preprocess dataset)
import pandas as pd

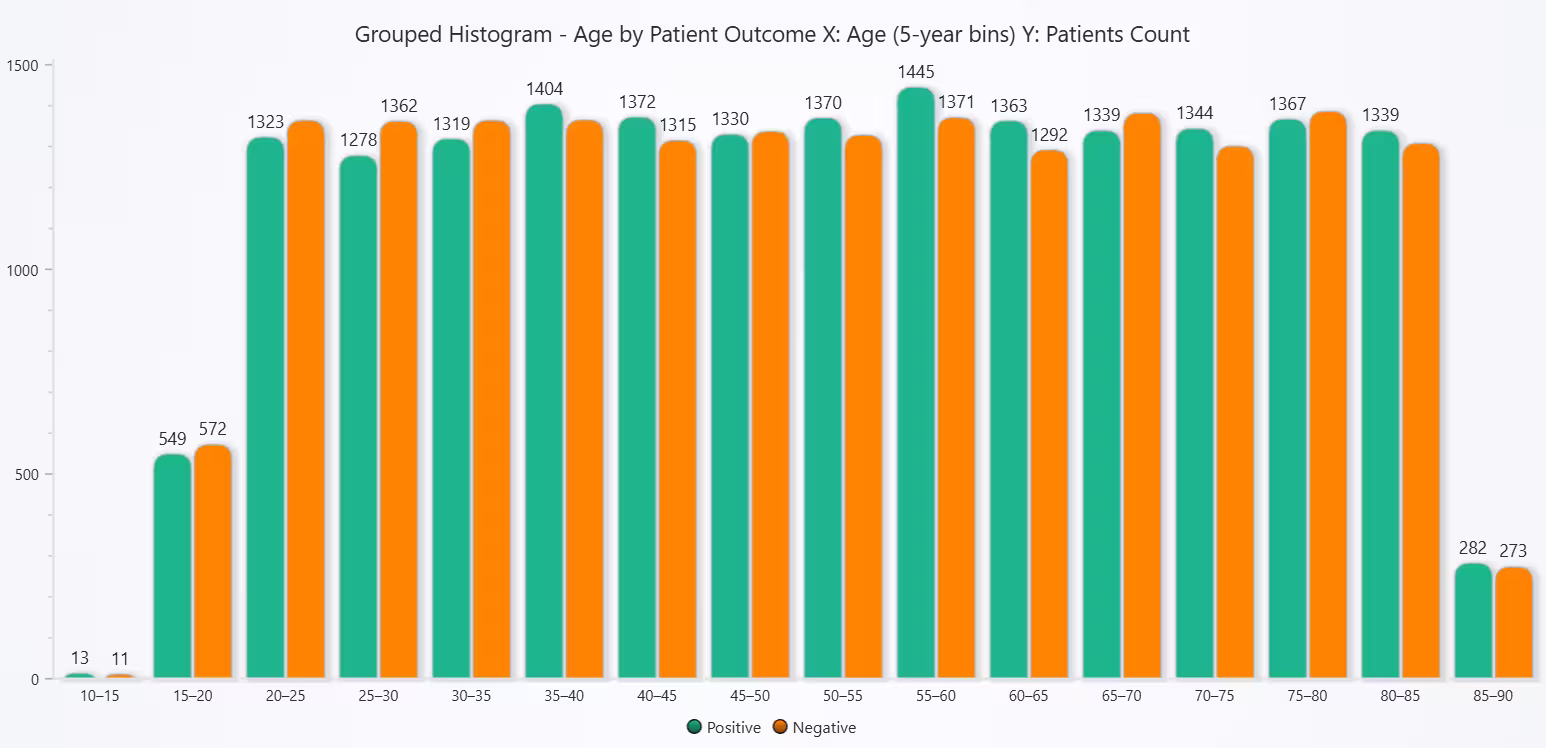

# Chart 1A - Grouped Histogram of Age by Patient Outcome (using outcome_flag)
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np

with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Keep only rows with known outcome
df = hd[['Age','outcome_flag']].dropna(subset=['Age','outcome_flag']).copy()

# Bins
bin_width = 5
age_min = int(np.floor(df['Age'].min() // bin_width) * bin_width)
age_max = int(np.ceil(df['Age'].max() / bin_width) * bin_width)
bins = np.arange(age_min, age_max + bin_width, bin_width)
categories = [f"{int(bins[i])}–{int(bins[i+1])}" for i in range(len(bins)-1)]

# Counts by outcome
pos_counts, _ = np.histogram(df.loc[df['outcome_flag']==1, 'Age'], bins=bins)
neg_counts, _ = np.histogram(df.loc[df['outcome_flag']==0, 'Age'], bins=bins)

title = "Grouped Histogram - Age by Patient Outcome\nX: Age (5-year bins)  Y: Patients Count"
chart = lc.BarChart(vertical=True, theme=lc.Themes.Light, title=title, html_text_rendering=True)
chart.set_data_grouped(
    categories,
    [
        {'subCategory': 'Positive', 'values': pos_counts.tolist()},
        {'subCategory': 'Negative', 'values': neg_counts.tolist()},
    ]
)
chart.set_sorting('disabled')
chart.set_category_axis_labels(size=12)
chart.set_value_axis_labels(major_size=12)

# Light-theme colors (Positive teal, Negative gray)
try:
    chart.set_series_colors(['#00A8E8', '#9AA0A6'])
except Exception:
    pass

chart.open()

# Chart 1B - Cumulative (ECDF-style) Grouped Histogram of Age by Patient Outcome
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np

with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Known outcomes only
df = hd[['Age','outcome_flag']].dropna(subset=['Age','outcome_flag']).copy()

# Bins
bin_width = 5
age_min = int(np.floor(df['Age'].min() // bin_width) * bin_width)
age_max = int(np.ceil(df['Age'].max() / bin_width) * bin_width)
bins = np.arange(age_min, age_max + bin_width, bin_width)
categories = [f"{int(bins[i])}–{int(bins[i+1])}" for i in range(len(bins)-1)]

# Counts
pos_counts, _ = np.histogram(df.loc[df['outcome_flag']==1, 'Age'], bins=bins)
neg_counts, _ = np.histogram(df.loc[df['outcome_flag']==0, 'Age'], bins=bins)

# Cumulative % within outcome
pos_total = pos_counts.sum() or 1
neg_total = neg_counts.sum() or 1
pos_cum_pct = (np.cumsum(pos_counts) / pos_total * 100).round(2)
neg_cum_pct = (np.cumsum(neg_counts) / neg_total * 100).round(2)

title = "Cumulative Age Distribution (ECDF-style) by Patient Outcome\nX: Age (5-year bins)  Y: Cumulative % within outcome"
chart = lc.BarChart(vertical=True, theme=lc.Themes.Light, title=title, html_text_rendering=True)
chart.set_data_grouped(
    categories,
    [
        {'subCategory': 'Positive (cum %)', 'values': pos_cum_pct.tolist()},
        {'subCategory': 'Negative (cum %)', 'values': neg_cum_pct.tolist()},
    ]
)
chart.set_sorting('disabled')
chart.set_category_axis_labels(size=12)
chart.set_value_axis_labels(major_size=12)

try:
    chart.set_series_colors(['#00A8E8', '#9AA0A6'])
except Exception:
    pass
chart.open()

# Chart 2A - Box Plot of Age by Patient Outcome
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# 1) Keep only rows with known outcome
df = hd[['Age', 'outcome_flag']].dropna(subset=['Age', 'outcome_flag']).copy()
ages_pos = df.loc[df['outcome_flag'] == 1, 'Age'].to_numpy()
ages_neg = df.loc[df['outcome_flag'] == 0, 'Age'].to_numpy()

def box_from_array(arr, start):
    """Build LightningChart box + outliers via IQR rule at x=[start, start+1]."""
    arr = np.asarray(arr, dtype=float)
    if arr.size == 0:
        return None, [], []
    q1 = float(np.percentile(arr, 25))
    q3 = float(np.percentile(arr, 75))
    med = float(np.median(arr))
    iqr = q3 - q1
    lo_b, hi_b = q1 - 1.5 * iqr, q3 + 1.5 * iqr
    non_out = arr[(arr >= lo_b) & (arr <= hi_b)]
    lo = float(non_out.min()) if non_out.size else float(arr.min())
    hi = float(non_out.max()) if non_out.size else float(arr.max())
    outs = arr[(arr < lo_b) | (arr > hi_b)]
    xs = [start + 0.5] * outs.size
    ys = outs.tolist()
    return {
        'start': start, 'end': start + 1,
        'lowerQuartile': q1, 'upperQuartile': q3, 'median': med,
        'lowerExtreme': lo, 'upperExtreme': hi,
    }, xs, ys

# 2) Build two boxes with wider spacing so no axis tweak is needed
dataset, x_out, y_out = [], [], []
bx_pos, xs, ys = box_from_array(ages_pos, start=1)   # Positive at ~[1,2]
if bx_pos: dataset.append(bx_pos); x_out += xs; y_out += ys
bx_neg, xs, ys = box_from_array(ages_neg, start=4)   # Negative at ~[4,5]
if bx_neg: dataset.append(bx_neg); x_out += xs; y_out += ys

title = (
    "Box Plot - Age by Patient Outcome (Positive vs Negative)\n"
    "X positions: [1-2]=Positive, [4-5]=Negative • Y: Age (years)"
)
chart = lc.ChartXY(theme=lc.Themes.Light, title=title, html_text_rendering=True)

# Boxes
box_series = chart.add_box_series()
box_series.add_multiple(dataset)

# Outliers
pts = chart.add_point_series(sizes=True, rotations=True, lookup_values=True)
pts.set_point_color('#D32F2F')  # red
pts.append_samples(x_values=x_out, y_values=y_out, sizes=[10] * len(y_out))

chart.open()

# Console stats
def stats(arr):
    return dict(n=int(arr.size),
                median=float(np.median(arr)) if arr.size else None,
                q1=float(np.percentile(arr,25)) if arr.size else None,
                q3=float(np.percentile(arr,75)) if arr.size else None)
print("Age stats by outcome ->",
      {"Positive": stats(ages_pos), "Negative": stats(ages_neg)})

# Chart 2B - Grouped Bar Chart of Hypertension (proxy for High Blood Pressure) by Patient Outcome
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import re
import numpy as np
import pandas as pd

with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Build hypertension flag from Medical Condition free text
cond = hd["Medical Condition"].astype(str).str.lower()
pattern = re.compile(r"\b(hypertension|htn|high\s*blood\s*pressure)\b")
hd["hypertension_flag"] = cond.apply(lambda s: 1 if bool(pattern.search(s)) else 0)

# Keep known outcomes only
df = hd[["hypertension_flag", "outcome_flag"]].dropna(subset=["outcome_flag"]).copy()

# Prevalence (%) by Patient Outcome
tbl = (df.groupby("outcome_flag")["hypertension_flag"]
         .value_counts(normalize=True)
         .rename("pct")
         .mul(100)
         .reset_index())
# Map labels
tbl["Outcome"] = tbl["outcome_flag"].map({1:"Positive",0:"Negative"})
tbl["BP status"] = tbl["hypertension_flag"].map({1:"Hypertension",0:"No Hypertension"})

# Reformat to grouped bars (Outcome on X, bars = BP status %)
categories = ["Negative","Positive"]
bp_groups = ["No Hypertension","Hypertension"]

def get_vals(status):
    return [float(tbl.query("Outcome==@o and `BP status`==@status")["pct"].sum()) for o in categories]

vals_nohtn = get_vals("No Hypertension")
vals_htn    = get_vals("Hypertension")

# Chart
title = "Hypertension (BP proxy) Prevalence by Patient Outcome\nX: Outcome  •  Y: % of patients"
chart = lc.BarChart(vertical=True, theme=lc.Themes.Light, title=title, html_text_rendering=True)
chart.set_data_grouped(
    categories,
    [
        {"subCategory": "No Hypertension", "values": vals_nohtn},
        {"subCategory": "Hypertension",    "values": vals_htn},
    ]
)
chart.set_sorting("disabled")
chart.set_category_axis_labels(size=12)
chart.set_value_axis_labels(major_size=12)
try:
    chart.set_series_colors(['#9AA0A6', '#00A8E8'])   # grey = No HTN, teal = HTN
except Exception:
    pass
chart.open()

# Console check
print("Hypertension prevalence (%):")
for o, p_no, p_yes in zip(categories, vals_nohtn, vals_htn):
    print(f"  {o:8s}  No HTN: {p_no:5.1f}%   HTN: {p_yes:5.1f}%")

# Chart 3A - Box Plot of Billing Amount by Patient Outcome
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Keep known outcomes and numeric Billing Amount
df = hd[['Billing Amount','outcome_flag']].copy()
df['Billing Amount'] = pd.to_numeric(df['Billing Amount'], errors='coerce')
df = df.dropna(subset=['Billing Amount','outcome_flag'])

vals_pos = df.loc[df['outcome_flag']==1, 'Billing Amount'].to_numpy()
vals_neg = df.loc[df['outcome_flag']==0, 'Billing Amount'].to_numpy()

def box_from_array(arr, start):
    arr = np.asarray(arr, dtype=float)
    if arr.size == 0: return None, [], []
    q1, q3 = np.percentile(arr, [25, 75])
    med = float(np.median(arr))
    iqr = q3 - q1
    lo_b, hi_b = q1 - 1.5*iqr, q3 + 1.5*iqr
    non_out = arr[(arr >= lo_b) & (arr <= hi_b)]
    lo = float(non_out.min()) if non_out.size else float(arr.min())
    hi = float(non_out.max()) if non_out.size else float(arr.max())
    outs = arr[(arr < lo_b) | (arr > hi_b)]
    xs = [start + 0.5] * outs.size
    ys = outs.tolist()
    return {
        'start': start, 'end': start + 1,
        'lowerQuartile': float(q1), 'upperQuartile': float(q3),
        'median': med, 'lowerExtreme': lo, 'upperExtreme': hi,
    }, xs, ys

dataset, x_out, y_out = [], [], []
bx_pos, xs, ys = box_from_array(vals_pos, start=1)   # Positive at [1,2]
if bx_pos: dataset.append(bx_pos); x_out += xs; y_out += ys
bx_neg, xs, ys = box_from_array(vals_neg, start=4)   # Negative at [4,5]
if bx_neg: dataset.append(bx_neg); x_out += xs; y_out += ys

title = "Box Plot - Billing Amount by Patient Outcome\nX: Positive vs Negative • Y: Billing Amount (currency units)"
chart = lc.ChartXY(theme=lc.Themes.Light, title=title, html_text_rendering=True)

# Boxes
box_series = chart.add_box_series()
box_series.add_multiple(dataset)

# Outliers (red)
pts = chart.add_point_series(sizes=True, rotations=True, lookup_values=True)
pts.set_point_color('#D32F2F')
pts.append_samples(x_values=x_out, y_values=y_out, sizes=[9]*len(y_out))

chart.open()

# Console summary for notes
def stats(a):
    return dict(n=int(a.size),
                median=float(np.median(a)) if a.size else None,
                q1=float(np.percentile(a,25)) if a.size else None,
                q3=float(np.percentile(a,75)) if a.size else None)
print("Billing Amount stats ->",
      {"Positive": stats(vals_pos), "Negative": stats(vals_neg)})

# Chart 3B - Grouped Percentage Bar Chart of Outcome composition by Billing Amount band (deciles)
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Prep
df = hd[['Billing Amount','outcome_flag']].copy()
df['Billing Amount'] = pd.to_numeric(df['Billing Amount'], errors='coerce')
df = df.dropna(subset=['Billing Amount','outcome_flag'])

# Build deciles (use qcut; drop duplicates if values are constant)
try:
    df['amt_bin'] = pd.qcut(df['Billing Amount'], q=10, duplicates='drop')
except Exception:
    # Fallback: 8 bins if too many ties
    df['amt_bin'] = pd.qcut(df['Billing Amount'], q=8, duplicates='drop')

# Labels as string ranges
labels = [f"{iv.left:.0f}–{iv.right:.0f}" for iv in df['amt_bin'].cat.categories]
df['bin_label'] = df['amt_bin'].cat.rename_categories(labels)

# Compute composition (% within each bin)
mix = (df.groupby(['bin_label','outcome_flag'])['Billing Amount']
         .count()
         .rename('n')
         .reset_index())

total_per_bin = mix.groupby('bin_label')['n'].transform('sum')
mix['pct'] = (mix['n'] / total_per_bin * 100).round(1)

# Order bins from low→high
labels_ordered = labels
def series_for(flag):
    s = mix.loc[mix['outcome_flag'].eq(flag), ['bin_label','pct']].set_index('bin_label').reindex(labels_ordered)['pct']
    return [0.0 if pd.isna(v) else float(v) for v in s.tolist()]

vals_pos = series_for(1)
vals_neg = series_for(0)

# Chart (Grouped bars with percentages)
title = "Outcome Composition by Billing Amount Band (Deciles)\nX: Billing Amount (low --> high) • Y: % within bin"
chart = lc.BarChart(vertical=True, theme=lc.Themes.Light, title=title, html_text_rendering=True)
chart.set_data_grouped(
    labels_ordered,
    [
        {'subCategory': 'Positive %', 'values': vals_pos},
        {'subCategory': 'Negative %', 'values': vals_neg},
    ]
)
chart.set_sorting('disabled')
chart.set_category_axis_labels(size=12)
chart.set_value_axis_labels(major_size=12)
try:
    chart.set_series_colors(['#00A8E8', '#5F6368'])  # teal = Positive, dark gray = Negative
except Exception:
    pass
chart.open()

# Console check
for lab, p_pos, p_neg in zip(labels_ordered, vals_pos, vals_neg):
    print(f"{lab:>15}: Positive {p_pos:5.1f}%  |  Negative {p_neg:5.1f}%  (≈100%)")

# Chart 4A - Bar Chart of Patient Outcome Counts
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Ensure we have outcome_flag (1=Positive, 0=Negative, NaN=Unknown)
if "outcome_flag" not in hd.columns:
    x = hd["Test Results"].astype(str).str.strip().str.lower()
    pos_words = {"positive","pos","detected","reactive","abnormal","yes","1","true","present","high","above normal"}
    neg_words = {"negative","neg","not detected","non-reactive","normal","no","0","false","absent","low","within normal"}
    is_pos = x.isin(pos_words)
    is_neg = x.isin(neg_words)
    hd["outcome_flag"] = np.select([is_pos, is_neg], [1, 0], default=np.nan)

# Counts
counts = hd["outcome_flag"].value_counts(dropna=False)
n_pos = int(counts.get(1.0, 0))
n_neg = int(counts.get(0.0, 0))
n_unk = int(counts.get(np.nan, 0)) if counts.index.dtype == "object" or counts.index.hasnans else 0

# Prepare bar data (keep order: Positive, Negative, Unknown if present)
bar_data = [
    {"category": "Positive", "value": n_pos},
    {"category": "Negative", "value": n_neg},
]
if n_unk > 0:
    bar_data.append({"category": "Unknown", "value": n_unk})

# Chart
title = "Patient Outcome Counts\nX: Outcome   Y: Number of patients"
chart = lc.BarChart(
    vertical=True,
    theme=lc.Themes.Light,
    title=title,
    html_text_rendering=True
)
chart.set_data(bar_data)
chart.set_sorting('disabled')
chart.set_category_axis_labels(size=12)        # X tick label size
chart.set_value_axis_labels(major_size=12)     # Y tick label size
try:
    chart.set_bars_color('#00A8E8')
except Exception:
    pass
chart.open()

# Console summary (optional)
print({"Positive": n_pos, "Negative": n_neg, **({"Unknown": n_unk} if n_unk else {})})

# Chart 4B - Stacked Bar Chart of Patient Outcome Composition
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Ensure outcome_flag exists (1=Positive, 0=Negative, NaN=Unknown)
if "outcome_flag" not in hd.columns:
    x = hd["Test Results"].astype(str).str.strip().str.lower()
    pos_words = {"positive","pos","detected","reactive","abnormal","yes","1","true","present","high","above normal"}
    neg_words = {"negative","neg","not detected","non-reactive","normal","no","0","false","absent","low","within normal"}
    is_pos = x.isin(pos_words)
    is_neg = x.isin(neg_words)
    hd["outcome_flag"] = np.select([is_pos, is_neg], [1, 0], default=np.nan)

# Counts and percentages
counts = hd["outcome_flag"].value_counts(dropna=False)
n_pos = int(counts.get(1.0, 0))
n_neg = int(counts.get(0.0, 0))
n_unk = int(counts.get(np.nan, 0)) if counts.index.dtype == "object" or counts.index.hasnans else 0
total = n_pos + n_neg + n_unk if (n_pos + n_neg + n_unk) > 0 else 1

p_pos = round(n_pos / total * 100, 1)
p_neg = round(n_neg / total * 100, 1)
p_unk = round(n_unk / total * 100, 1)

# Stacked single bar (normalize to 100)
title = (
    "Patient Outcome Composition (100% Stacked)\n"
    f"Positive {p_pos}%, Negative {p_neg}%"
    + (f", Unknown {p_unk}%" if n_unk > 0 else "")
)
chart = lc.BarChart(vertical=True, theme=lc.Themes.Light, title=title, html_text_rendering=True)

# Make the title double as an axis label
chart.set_title("Patient Outcome Composition (100% Stacked)\nX: All Patients • Y: Percentage (%)")

# Format Y ticks as whole percents (fallback to plain labels if formatter isn't supported)
try:
    chart.set_value_axis_labels(major_size=12, formatter=lambda v: f"{int(round(v))}%")
except Exception:
    chart.set_value_axis_labels(major_size=12)

categories = ["All Patients"]
series = [
    {"subCategory": f"Positive ({p_pos}%)", "values": [p_pos]},
    {"subCategory": f"Negative ({p_neg}%)", "values": [p_neg]},
]
if n_unk > 0:
    series.append({"subCategory": f"Unknown ({p_unk}%)", "values": [p_unk]})

chart.set_data_stacked(categories, series)
chart.set_sorting('disabled')
chart.set_category_axis_labels(size=12)
chart.set_value_axis_labels(major_size=12)   # shows 0–100%

# Theme-matched colors (teal, dark gray, light gray)
try:
    colors = ['#00A8E8', '#5F6368'] + (['#B0B7BD'] if n_unk > 0 else [])
    chart.set_series_colors(colors)
except Exception:
    pass

chart.open()

# Optional console summary
print({"Positive": (n_pos, p_pos), "Negative": (n_neg, p_neg), **({"Unknown": (n_unk, p_unk)} if n_unk else {})})

# Chart 5A - Correlation Heatmap of All Numerical Parameters (Pearson)
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Select numeric columns by NAME
num_cols = hd.select_dtypes(include=[np.number]).columns.tolist()

# Drop near-constant columns (avoid NaN correlations)
def _is_almost_constant(s, thresh_unique=2):
    return pd.Series(s).nunique(dropna=True) < thresh_unique

num_cols = [c for c in num_cols if not _is_almost_constant(hd[c])]

if len(num_cols) < 2:
    raise ValueError(f"Need ≥2 numeric columns for correlation heatmap, found: {num_cols}")

# Correlation matrix (Pearson) with named axes
corr = hd[num_cols].corr(method="pearson", min_periods=1).fillna(0.0)
mat = corr.to_numpy(dtype=float)
n = mat.shape[0]
labels = list(corr.columns)

title = "Correlation Heatmap (Pearson) - Numerical Features"
chart = lc.ChartXY(title=title, theme=lc.Themes.Light, html_text_rendering=True)

# Optional: add padding so long labels aren't clipped
if hasattr(chart, "set_padding"):
    chart.set_padding(left=110, right=24, top=24, bottom=110)

# Heatmap grid series
heat = chart.add_heatmap_grid_series(columns=n, rows=n)
heat.set_start(x=0, y=0)
heat.set_end(x=n, y=n)
heat.set_step(x=1, y=1)
heat.set_intensity_interpolation(False)             # crisp cells
heat.invalidate_intensity_values(mat.tolist())
heat.hide_wireframe()

# Diverging palette (−1 → blue, 0 → white, +1 → red)
heat.set_palette_coloring(
    steps=[
        {"value": -1.0, "color": ("navy")},
        {"value": -0.5, "color": ("deepskyblue")},
        {"value":  0.0, "color": ("white")},
        {"value":  0.5, "color": ("orange")},
        {"value":  1.0, "color": ("red")},
    ],
    look_up_property="value",
    interpolate=True
)

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Features (X)")
y_axis.set_title("Features (Y)")

# Put ticks at the center of each cell (0.5, 1.5, ...)
x_axis.set_interval(0, n)
y_axis.set_interval(0, n)

# Hide default numeric ticks (like in 5B)
for ax in (x_axis, y_axis):
    try:
        ax.set_tick_strategy("Empty")
    except Exception:
        pass

# Optional: wrap long labels to avoid overlap (increase width to keep on one line)
WRAP_WIDTH = 20
def _wrap(s, width=WRAP_WIDTH):
    s = str(s)
    return "\n".join(s[i:i+width] for i in range(0, len(s), width))

# Add ONLY custom named ticks at cell centers
def _apply_named_ticks(axis, names):
    try:
        if hasattr(axis, "clear_custom_ticks"):
            axis.clear_custom_ticks()
        for i, name in enumerate(names):
            tick = axis.add_custom_tick()
            tick.set_value(i + 0.5)     # center of the cell
            tick.set_text(_wrap(name))
            if hasattr(tick, "set_grid_line_visible"):
                tick.set_grid_line_visible(False)
        return True
    except Exception:
        return False

ok_x = _apply_named_ticks(x_axis, labels)
ok_y = _apply_named_ticks(y_axis, labels)

chart.open()

# Fallback mapping (in case custom ticks aren't supported by your LC build)
if not (ok_x and ok_y):
    print("Note: Could not add named ticks on axes in this LC build.")
    print("Feature order (index → name):")
    for i, c in enumerate(labels):
        print(f"{i:>2}: {c}")

# Chart 5B - Outcome-wise Feature Profile (Z-scored Means) Heatmap
# Developed with AI assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Ensure LOS_days exists if dates are present
if "LOS_days" not in hd.columns:
    if "Discharge Date" in hd.columns and "Date of Admission" in hd.columns:
        hd["Date of Admission"] = pd.to_datetime(hd["Date of Admission"], errors="coerce")
        hd["Discharge Date"] = pd.to_datetime(hd["Discharge Date"], errors="coerce")
        hd["LOS_days"] = (hd["Discharge Date"] - hd["Date of Admission"]).dt.days

# Candidate numeric features (extend as needed)
candidate_features = ["Age", "LOS_days", "Billing Amount"]
features = [c for c in candidate_features if c in hd.columns]
if not features:
    raise ValueError("No usable numeric features found for Chart 5B.")

# Expect `outcome_flag` in hd: 1=Positive, 0=Negative, NaN=Unknown
if "outcome_flag" not in hd.columns:
    raise ValueError("Column 'outcome_flag' not found in hd. Please create it before Chart 5B.")

df = hd[features + ["outcome_flag"]].copy()
for c in features:
    df[c] = pd.to_numeric(df[c], errors="coerce")

df["outcome"] = df["outcome_flag"].map({1: "Positive", 0: "Negative"}).fillna("Unknown")

# Drop rows that are all-NaN across selected features
df = df.dropna(subset=features, how="all")
if df.empty:
    raise ValueError("No usable rows for Chart 5B after cleaning.")

# Global stats (per feature)
global_mean = df[features].mean()
global_std = df[features].std(ddof=0).replace(0, np.nan)  # avoid /0

# Outcome means (fixed order)
row_labels = ["Positive", "Negative", "Unknown"]
means = (
    df.groupby("outcome")[features]
      .mean()
      .reindex(row_labels)
)

# Z-scores
z = (means - global_mean) / global_std
z = z.fillna(0.0)
mat = z.to_numpy(dtype=float)
rows, cols = mat.shape

title = "Outcome-wise Feature Profile (Z-scored Means)"
chart = lc.ChartXY(title=title, theme=lc.Themes.Light, html_text_rendering=True)

# Add padding so long labels aren't clipped (safe if available)
if hasattr(chart, "set_padding"):
    chart.set_padding(left=110, right=24, top=24, bottom=110)

hm = chart.add_heatmap_grid_series(columns=cols, rows=rows)
hm.set_start(x=0, y=0)
hm.set_end(x=cols, y=rows)
hm.set_step(x=1, y=1)
hm.set_intensity_interpolation(False)             # crisp cells
hm.invalidate_intensity_values(mat.tolist())
hm.hide_wireframe()

# Auto-scale diverging palette around 0 using p95 of |z|
p95 = float(np.nanpercentile(np.abs(mat), 95)) if mat.size else 0.0
max_abs = max(p95, 0.10)

hm.set_palette_coloring(
    steps=[
        {"value": -max_abs,        "color": "#1B0C17"},
        {"value": -max_abs * 0.5,  "color": "#8E1D2A"},
        {"value":  0.0,            "color": "white"},
        {"value":  max_abs * 0.5,  "color": "#083111"},
        {"value":  max_abs,        "color": "#DA898A"},
    ],
    look_up_property="value",
    interpolate=True
)

x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Features")
y_axis.set_title("Outcome")
x_axis.set_interval(0, cols)
y_axis.set_interval(0, rows)

# Overlap fix: hide default numeric ticks
for ax in (x_axis, y_axis):
    try:
        ax.set_tick_strategy("Empty")
    except Exception:
        pass

# Optional: adjust wrapping width (increase to keep on one line)
WRAP_WIDTH = 20
def _wrap(s, width=WRAP_WIDTH):
    s = str(s)
    return "\n".join(s[i:i+width] for i in range(0, len(s), width))

# Add ONLY custom named ticks at cell centers
def _apply_named_ticks(axis, names, offset=0.5):
    try:
        if hasattr(axis, "clear_custom_ticks"):
            axis.clear_custom_ticks()
        for i, name in enumerate(names):
            tick = axis.add_custom_tick()
            tick.set_value(i + offset)
            tick.set_text(_wrap(name))
            if hasattr(tick, "set_grid_line_visible"):
                tick.set_grid_line_visible(False)
        return True
    except Exception:
        return False

ok_x = _apply_named_ticks(x_axis, list(z.columns), offset=0.5)
ok_y = _apply_named_ticks(y_axis, list(z.index),   offset=0.5)

chart.open()

# Fallback mapping (only if custom ticks unsupported)
if not (ok_x and ok_y):
    print("\nFallback label mapping (custom ticks not available):")
    print("Chart 5B — outcome rows:")
    for i, r in enumerate(z.index.tolist()):
        print(f"  {i}: {r}")
    print("Chart 5B — feature columns:")
    for j, c in enumerate(z.columns.tolist()):
        print(f"  {j}: {c}")

print("\nZ-scored means (rows=Outcome, cols=Features):")
print(z.round(2))
