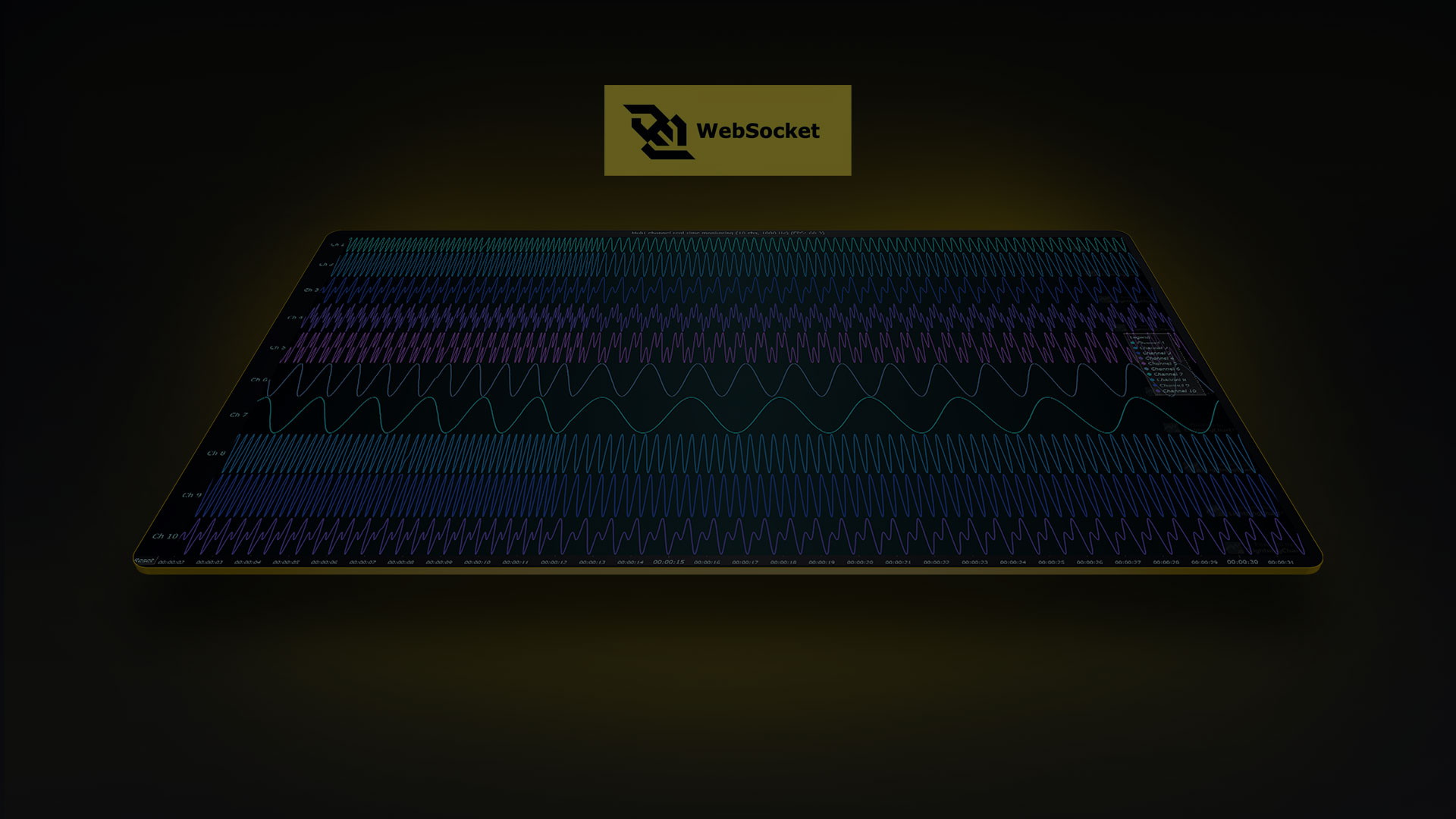

Real-time data visualization withWebSockets & LightningChart JS

ArticleLearn how WebSockets supports real-time data visualization.

WebSockets Data Visualization in Real-Time

These days it is ever increasingly common that people require web solutions for their applications and services. Data visualization is not an exception to this, as different graphs, visuals, and charts are continuously being integrated into different web applications and sites.

This blog looks into the interesting use case of real-time data visualization with a large scope, including the logistics of data transfer. In real-time data visualization, the application is monitoring a data source that is updating in real-time – for example, every couple of seconds or even very frequently such as 100 times per second.

This kind of system can roughly be split into two distinct parts, data transfer

WebSockets

… and data visualization.

websockets data visualization
Here at LightningChart, naturally, we are experts in the latter part of data visualization and we have a large collection of examples of how real-time data visualization could be implemented.

In this blog, however, we will be focusing mainly on solving the data transfer problem, for this is not trivial. While data visualization has a history of being “heavy technology”, transferring data can be an equal or even larger technical bottleneck.

WebSocket to the rescue

WebSocket is the real-time communication method on the web – it enjoys wide support and really doesn’t mind what kind of platform it is used on (browsers, Node.js servers, IoT devices, …).

geospatial-data-visualization
And the best part is WebSockets is super powerful – in our tests with a good network connection, we could transfer more than 1 million data points per second, and even with a really bad network connection (server in the USA, user in Finland) 30 thousand data points per second.

Realistically, this data rate already covers the wide majority of real-time data visualization use cases.

How is it implemented?

WebSocket communication is event-driven and bi-directional, meaning that in the above diagram both the “data server” and “user interface” could initiate communication once the connection is formed.

WebSockets can be used to transfer just about any kind of information imaginable. For simple applications with small data rates, we suggest JSON. You can find here the JSON code example.

As for applications that require transferring large quantities of data, we suggest using binary communication for more efficient bandwidth utilization. You can find here the binary communication example code example.

Long story short…WebSockets Data Visualization

The combination of a real-time web data visualization library (LightningChart JS) and WebSocket data transfer is a power package, which can be used for a wide variety of data visualization applications targeting nearly any kind of user interface device (computer, laptop, phone, etc.).

The WebSocket API assists a bi-directional communication between the user’s browser and a server. In addition, LightningChart has been built for supporting real-time and data-intensive data visualization applications.

Using both technologies can result in limitless and high-performance charting applications for the web.

WebSockets-and-LightningChart-JS-real-time-data-visualization
Niilo-Keinanen

Niilo Keinänen

LightningChart JS CTO
