%pip install numpy pandas lightningchart

Downloaded the dataset from https://www.kaggle.com/datasets/ziya07/financial-transaction-and-risk-management-dataset

# Import necessary libraries (load pandas library to preprocess dataset)
import pandas as pd

# Chart 1 – Histogram of Transaction Amounts (Debit vs Credit)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# Load license
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Extract amounts by transaction type (case-insensitive match)
debit_amounts = ftrmd[ftrmd['Transaction_Type'].str.lower() == 'debit']['Amount'].to_numpy()
credit_amounts = ftrmd[ftrmd['Transaction_Type'].str.lower() == 'credit']['Amount'].to_numpy()

# Choose common bins for fair comparison
n_bins = 40
global_min = min(debit_amounts.min() if debit_amounts.size else 0,
                 credit_amounts.min() if credit_amounts.size else 0)
global_max = max(debit_amounts.max() if debit_amounts.size else 1,
                 credit_amounts.max() if credit_amounts.size else 1)

# Avoid identical min/max (flat data)
if global_min == global_max:
    global_max = global_min + 1e-6

bin_edges = np.linspace(global_min, global_max, n_bins + 1)

# Compute histograms with the SAME bin edges
counts_debit, _ = np.histogram(debit_amounts, bins=bin_edges)
counts_credit, _ = np.histogram(credit_amounts, bins=bin_edges)

# Prepare bar data lists in the BarChart format
def build_bar_data(counts, edges):
    return [
        {"category": f"{edges[i]:.2f}–{edges[i+1]:.2f}", "value": int(count)}
        for i, count in enumerate(counts)
    ]

bar_data_debit = build_bar_data(counts_debit, bin_edges)
bar_data_credit = build_bar_data(counts_credit, bin_edges)

# Debit Histogram
chart_debit = lc.BarChart(
    vertical=True,
    theme=lc.Themes.Light,
    title='Histogram of Transaction Amounts (Debit)\nX = Transaction Amount Bins, Y = Frequency'
)
chart_debit.set_data(bar_data_debit)
chart_debit.set_sorting('disabled')     # keep bin order
chart_debit.set_bars_color(('red'))     # color per your style

# Credit Histogram
chart_credit = lc.BarChart(
    vertical=True,
    theme=lc.Themes.Light,
    title='Histogram of Transaction Amounts (Credit)\nX = Transaction Amount Bins, Y = Frequency'
)
chart_credit.set_data(bar_data_credit)
chart_credit.set_sorting('disabled')    # keep bin order
chart_credit.set_bars_color(('blue'))

# Open charts (two windows)
chart_debit.open()
chart_credit.open()

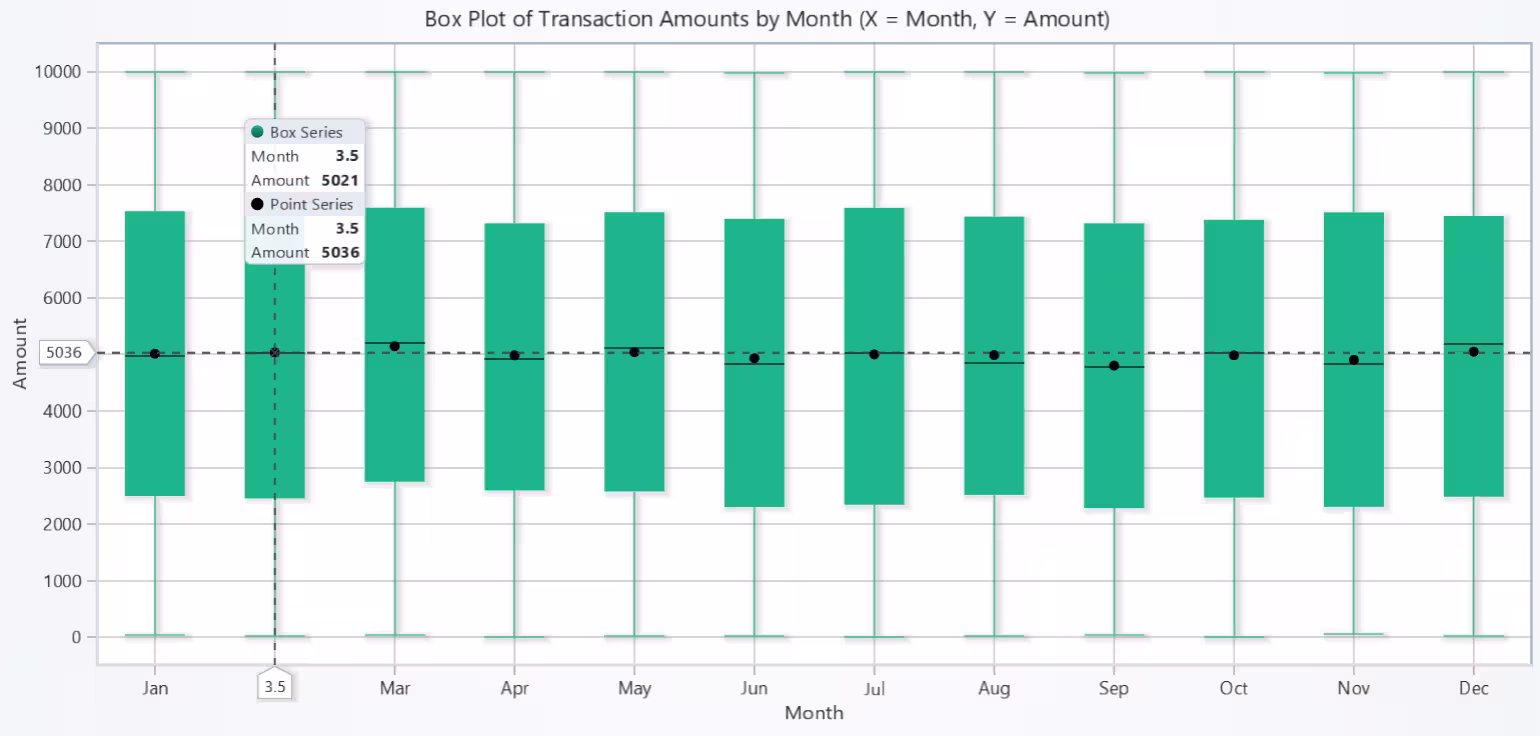

# Ensure Date is datetime
ftrmd['Date'] = pd.to_datetime(ftrmd['Date'], errors='coerce')

# Month ordering (Jan..Dec)
ftrmd['MonthNum'] = ftrmd['Date'].dt.month
ftrmd['Month'] = ftrmd['Date'].dt.strftime('%b')
month_order = ['Jan','Feb','Mar','Apr','May','Jun','Jul','Aug','Sep','Oct','Nov','Dec']

# Get amounts per month (keep both types together; box plot is over all transactions)
groups = {m: ftrmd.loc[ftrmd['Month'] == m, 'Amount'].to_numpy()
          for m in month_order}

# Chart 3 – Account Balance vs Transaction Amount (Scatter Plot)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# X = Amount (as-is), Y = Balance (synthetic running balance)
x_vals = ftrmd['Amount'].astype(float).to_numpy()
y_vals = ftrmd['Balance'].astype(float).to_numpy()

# Compute palette control points from Y (Balance) distribution
y_min = float(np.nanmin(y_vals))
y_q25 = float(np.nanpercentile(y_vals, 25))
y_q75 = float(np.nanpercentile(y_vals, 75))
y_max = float(np.nanmax(y_vals))

# Chart
chart = lc.ChartXY(title="Scatter: Account Balance vs Transaction Amount",
                   theme=lc.Themes.Light)

# Scatter series
point_series = chart.add_point_series()

# Color by Y (Balance) like the doc sample
point_series.set_palette_point_coloring(
    steps=[
        {'value': y_min, 'color': ('darkblue')},
        {'value': y_q25, 'color': ('lightblue')},
        {'value': y_q75, 'color': ('orange')},
        {'value': y_max, 'color': ('red')},
    ],
    look_up_property='y',
    percentage_values=False
)

# Add points
point_series.add(x=x_vals, y=y_vals)

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Transaction Amount")
y_axis.set_title("Account Balance")

#  pad view
try:
    pad_x = 0.05 * (x_vals.max() - x_vals.min() if x_vals.size else 1.0)
    pad_y = 0.05 * (y_vals.max() - y_vals.min() if y_vals.size else 1.0)
    x_axis.set_interval(float(x_vals.min()) - pad_x, float(x_vals.max()) + pad_x, False)
    y_axis.set_interval(float(y_vals.min()) - pad_y, float(y_vals.max()) + pad_y, False)
except Exception:
    pass

chart.open()

# Chart 5 – Amount, Balance, and Transaction Frequency (Correlation Heatmap)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import pandas as pd
import numpy as np

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Per-account metrics
acc_metrics = (
    ftrmd.sort_values(['Account_Number', 'Date'])
         .groupby('Account_Number')
         .agg(
             avg_amount=('Amount', 'mean'),
             end_balance=('Balance', 'last'),
             tx_count=('Transaction_ID', 'count')
         )
)

# Compute Pearson correlations
corr = acc_metrics[['avg_amount', 'end_balance', 'tx_count']].corr()

pairs = [
    ("Avg Amount vs Balance",   float(corr.loc['avg_amount', 'end_balance'])),
    ("Avg Amount vs Tx Count",  float(corr.loc['avg_amount', 'tx_count'])),
    ("Balance vs Tx Count",     float(corr.loc['end_balance','tx_count'])),
]

# Drop NaNs just in case
labels, y_vals = zip(*[(lab, val) for (lab, val) in pairs if np.isfinite(val)])
labels = list(labels)
y_vals = np.array(y_vals, dtype=float)

# X positions 1..N
x_vals = np.arange(1, len(labels) + 1, dtype=float)

# Chart
chart = lc.ChartXY(title="Correlation — Amount, Balance, Tx Count (Point Palette)",
                   theme=lc.Themes.Light)

# Bigger points + palette by Y
point_series = chart.add_point_series(sizes=True, rotations=False, lookup_values=True)
point_series.set_palette_point_coloring(
    steps=[
        {'value': -1.0, 'color': ('darkblue')},
        {'value': -0.33, 'color': ('lightblue')},
        {'value':  0.33, 'color': ('orange')},
        {'value':  1.0,  'color': ('red')},
    ],
    look_up_property='y',
    percentage_values=False
)
# Add data with explicit sizes so they’re visible
point_series.append_samples(
    x_values=x_vals.tolist(),
    y_values=y_vals.tolist(),
    sizes=[14] * len(y_vals),
)

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Variable Pair")
y_axis.set_title("Correlation (r)")

# Fixed ranges for correlations
x_axis.set_interval(0.5, len(labels) + 0.5, False)
y_axis.set_interval(-1.05, 1.05, False)

# Custom tick labels — keep references so they persist
x_axis.set_tick_strategy('Empty')
_custom_ticks = []  # keep refs alive
for i, lab in enumerate(labels, start=1):
    t = x_axis.add_custom_tick()
    t.set_value(float(i)).set_text(lab)
    _custom_ticks.append(t)

chart.open()

# Chart 6 – Daily Account Balance Over Time (Line Chart)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import pandas as pd
import numpy as np

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# ensure datetime + synthetic balance exist
ftrmd['Date'] = pd.to_datetime(ftrmd['Date'], errors='coerce')
ftrmd = ftrmd.sort_values(['Account_Number', 'Date'])

if 'Signed_Amount' not in ftrmd.columns:
    ftrmd['Signed_Amount'] = ftrmd.apply(
        lambda r: -r['Amount'] if str(r['Transaction_Type']).lower() == 'debit' else r['Amount'], axis=1
    )
if 'Balance' not in ftrmd.columns:
    ftrmd['Balance'] = ftrmd.groupby('Account_Number')['Signed_Amount'].cumsum()

# Choose account to plot (most active by default)
SELECT_ACCOUNT = None  # set to a specific Account_Number (e.g., 123456) to override
if SELECT_ACCOUNT is None:
    SELECT_ACCOUNT = ftrmd['Account_Number'].value_counts().idxmax()

df_acc = ftrmd.loc[ftrmd['Account_Number'] == SELECT_ACCOUNT].copy()

# End-of-day balance series
df_acc['Day'] = df_acc['Date'].dt.normalize()
daily_balance = (
    df_acc.groupby('Day', as_index=False)['Balance']
          .last()                       # end-of-day balance
          .sort_values('Day')
)

# X = day index (0..N-1), Y = balance
x_values = list(range(len(daily_balance)))
y_values = daily_balance['Balance'].astype(float).tolist()

# Chart
chart = lc.ChartXY(
    theme=lc.Themes.Light,
    title=f"Daily Account Balance Over Time — Account {SELECT_ACCOUNT}\n(X = Date, Y = Balance)"
)

# Line series
chart.add_line_series().append_samples(
    x_values=x_values,
    y_values=y_values
)

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Date")
y_axis.set_title("Account Balance")

# Show whole series nicely
if len(x_values) > 0:
    x_axis.set_interval(-0.5, len(x_values) - 0.5, False)
    ymin, ymax = float(np.min(y_values)), float(np.max(y_values))
    pad = 0.05 * (ymax - ymin if ymax > ymin else 1.0)
    y_axis.set_interval(ymin - pad, ymax + pad, False)

# Put readable date labels on X (custom ticks)
x_axis.set_tick_strategy('Empty')
_keep_ticks = []
if len(x_values) > 0:
    # pick up to 8 evenly spaced ticks
    tick_pos = np.linspace(0, len(x_values) - 1, num=min(8, len(x_values)), dtype=int)
    for pos in np.unique(tick_pos):
        label = pd.to_datetime(daily_balance['Day'].iloc[pos]).strftime('%Y-%m-%d')
        t = x_axis.add_custom_tick().set_value(float(pos)).set_text(label)
        _keep_ticks.append(t)  # store refs

chart.open()

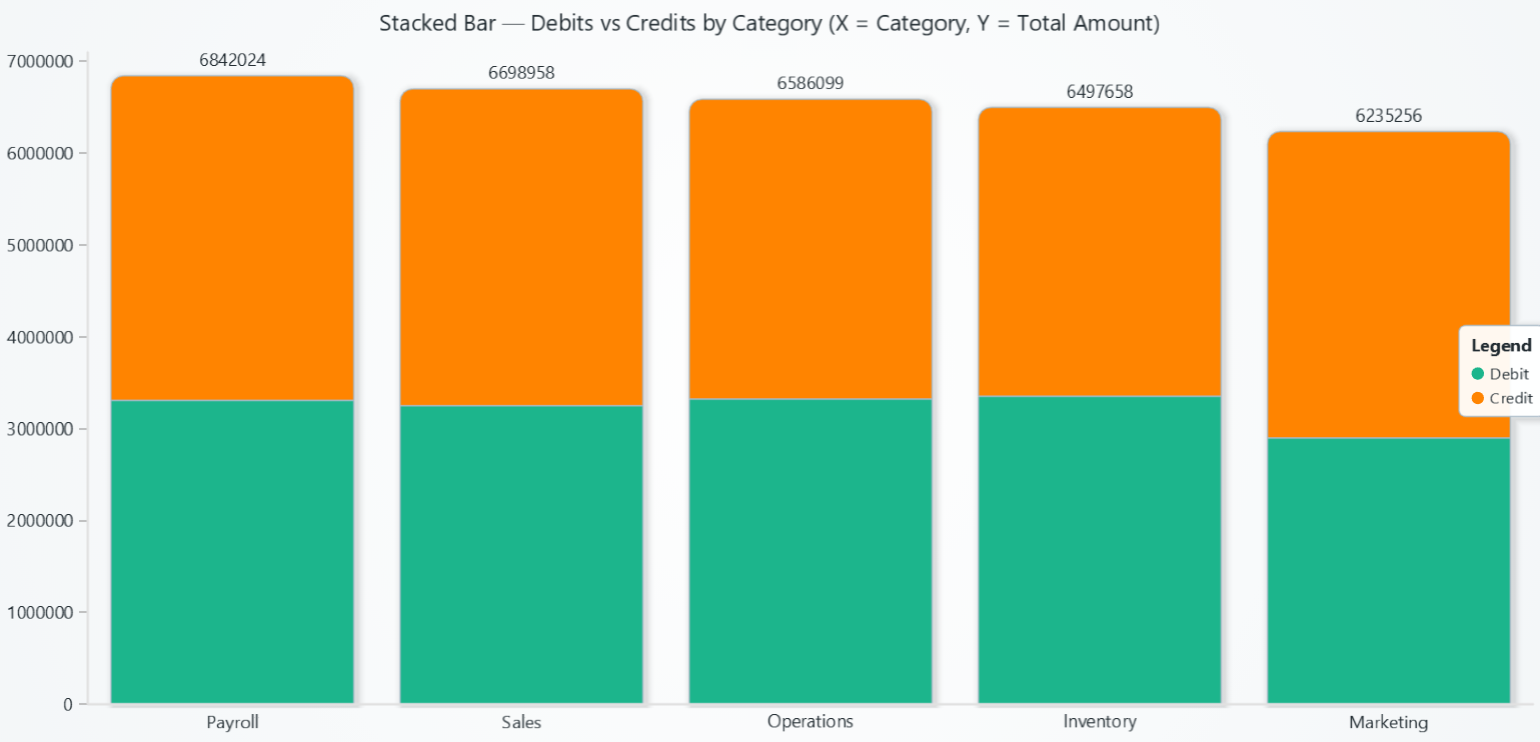

# Chart 7 – Debits vs Credits by Category (Stacked Bar Chart)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Aggregate total AMOUNT by Category & Type
mask = ftrmd['Transaction_Type'].str.lower().isin(['debit', 'credit'])
df = ftrmd.loc[mask, ['Category', 'Transaction_Type', 'Amount']].copy()
df['Transaction_Type'] = df['Transaction_Type'].str.capitalize()  # Debit/Credit

pivot = (
    df.groupby(['Category', 'Transaction_Type'])['Amount']
      .sum()
      .unstack(fill_value=0)
      .reindex(columns=['Debit', 'Credit'], fill_value=0)
)

# Limit to Top-N categories by total for readability
TOP_N = 12
pivot = pivot.assign(_total=pivot.sum(axis=1))\
             .sort_values('_total', ascending=False)\
             .head(TOP_N)\
             .drop(columns=['_total'])

categories = pivot.index.tolist()
debit_values  = pivot['Debit'].astype(float).tolist()
credit_values = pivot['Credit'].astype(float).tolist()

# Stacked Bar Chart (matches LC sample style)
chart = lc.BarChart(
    vertical=True,
    theme=lc.Themes.Light,
    title='Stacked Bar — Debits vs Credits by Category\n(X = Category, Y = Total Amount)'
)

chart.set_sorting('disabled')  # preserve our Top-N order

chart.set_data_stacked(
    categories,
    [
        {'subCategory': 'Debit',  'values': debit_values},
        {'subCategory': 'Credit', 'values': credit_values},
    ],
)

# Legend (per sample)
chart.add_legend().add(chart)

chart.open()

# Chart 8 – Transaction Amounts by Account Type (Box Plot)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import numpy as np
import pandas as pd

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Preparation
ftrmd['Amount'] = pd.to_numeric(ftrmd['Amount'], errors='coerce')
ftrmd = ftrmd.dropna(subset=['Amount'])

group_col = 'Account_Type' if 'Account_Type' in ftrmd.columns else 'Payment_Method'

# Limit to Top-N account types by transaction count for readability
TOP_N = 10
categories = (
    ftrmd[group_col]
    .value_counts()
    .head(TOP_N)
    .index
    .tolist()
)

# Build dict: account type -> list of amounts
category_data = {cat: ftrmd.loc[ftrmd[group_col] == cat, 'Amount'].tolist()
                 for cat in categories}

# Chart
chart = lc.ChartXY(theme=lc.Themes.Light,
                   title='Box Plot of Transaction Amounts by Account Type\n(X = Account Type, Y = Amount)')

dataset = []
x_values_outlier, y_values_outlier = [], []
x_means, y_means = [], []

for i, category in enumerate(categories):
    data = category_data[category]
    if not data:
        continue

    start = (i * 2) + 1
    end   = start + 1

    # Quartiles & median
    lowerQuartile = float(np.percentile(data, 25))
    upperQuartile = float(np.percentile(data, 75))
    median        = float(np.median(data))

    # Tukey fences
    iqr = upperQuartile - lowerQuartile
    lower_bound = lowerQuartile - 1.5 * iqr
    upper_bound = upperQuartile + 1.5 * iqr

    # Whiskers = min/max among non-outliers
    non_outliers = [y for y in data if lower_bound <= y <= upper_bound]
    if len(non_outliers) == 0:
        lowerExtreme = lowerQuartile
        upperExtreme = upperQuartile
    else:
        lowerExtreme = float(min(non_outliers))
        upperExtreme = float(max(non_outliers))

    # Box item
    dataset.append({
        'start': start,
        'end': end,
        'lowerQuartile': lowerQuartile,
        'upperQuartile': upperQuartile,
        'median': median,
        'lowerExtreme': lowerExtreme,
        'upperExtreme': upperExtreme,
    })

    # Outliers (red)
    outs = [y for y in data if y < lower_bound or y > upper_bound]
    if outs:
        x_values_outlier += [start + 0.5] * len(outs)
        y_values_outlier += [float(v) for v in outs]

    # Mean marker (black)
    x_means.append(start + 0.5)
    y_means.append(float(np.mean(data)))

# Add box series
series = chart.add_box_series()
series.add_multiple(dataset)

# Add outliers to the chart (red)
if y_values_outlier:
    outlier_series = chart.add_point_series(sizes=True, rotations=True, lookup_values=True)
    outlier_series.set_point_color(('red'))
    outlier_series.append_samples(
        x_values=x_values_outlier,
        y_values=y_values_outlier,
        sizes=[10] * len(y_values_outlier),
    )

# Add mean markers (black)
if y_means:
    mean_series = chart.add_point_series(sizes=True, rotations=True, lookup_values=True)
    mean_series.set_point_color(('black'))
    mean_series.append_samples(
        x_values=x_means,
        y_values=y_means,
        sizes=[8] * len(y_means),
    )

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title('Account Type')
y_axis.set_title('Amount')

# Keep all boxes in view
x_axis.set_interval(0, 2 * len(categories) + 1, False)

# Custom category labels centered on each box
x_axis.set_tick_strategy('Empty')
_tick_refs = []
for i, cat in enumerate(categories):
    pos = (i * 2) + 1.5
    t = x_axis.add_custom_tick().set_value(pos).set_text(str(cat))
    _tick_refs.append(t)  # keep references

chart.open()

# Chart 9 – Cumulative Balance vs Transaction Count by Day (Scatter Plot)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import pandas as pd
import numpy as np

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Preparation: daily tx count & company-level cumulative balance
ftrmd['Date'] = pd.to_datetime(ftrmd['Date'], errors='coerce')

# Ensure Signed_Amount exists (Debit negative, Credit/others positive)
if 'Signed_Amount' not in ftrmd.columns:
    ftrmd['Signed_Amount'] = ftrmd.apply(
        lambda r: -r['Amount'] if str(r['Transaction_Type']).lower() == 'debit' else r['Amount'],
        axis=1
    )

# Day-level aggregation
ftrmd['Day'] = ftrmd['Date'].dt.normalize()
daily = (
    ftrmd.groupby('Day')
         .agg(tx_count=('Transaction_ID', 'count'),
              net_flow=('Signed_Amount', 'sum'))
         .sort_index()
         .reset_index()
)

# Company-level cumulative balance over days
daily['cum_balance'] = daily['net_flow'].cumsum()

# X = transactions per day, Y = cumulative balance up to that day
x_vals = daily['tx_count'].astype(float).to_numpy()
y_vals = daily['cum_balance'].astype(float).to_numpy()

# Palette breakpoints from Y distribution (like sample but data-driven)
y_min  = float(np.nanmin(y_vals))
y_q25  = float(np.nanpercentile(y_vals, 25))
y_q75  = float(np.nanpercentile(y_vals, 75))
y_max  = float(np.nanmax(y_vals))

# Chart
chart = lc.ChartXY(title="Scatter: Cumulative Balance vs Transaction Count by Day",
                   theme=lc.Themes.Light)

point_series = chart.add_point_series()
point_series.set_palette_point_coloring(
    steps=[
        {'value': y_min, 'color': ('darkblue')},
        {'value': y_q25, 'color': ('lightblue')},
        {'value': y_q75, 'color': ('orange')},
        {'value': y_max, 'color': ('red')},
    ],
    look_up_property='y',
    percentage_values=False
)

# Add the data
point_series.add(x=x_vals, y=y_vals)

# Axes
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title("Transaction Count (per day)")
y_axis.set_title("Cumulative Balance")

# nice padding
try:
    x_min, x_max = float(np.min(x_vals)), float(np.max(x_vals))
    y_min_v, y_max_v = float(np.min(y_vals)), float(np.max(y_vals))
    x_pad = 0.05 * (x_max - x_min if x_max > x_min else 1.0)
    y_pad = 0.05 * (y_max_v - y_min_v if y_max_v > y_min_v else 1.0)
    x_axis.set_interval(x_min - x_pad, x_max + x_pad, False)
    y_axis.set_interval(y_min_v - y_pad, y_max_v + y_pad, False)
except Exception:
    pass

chart.open()

# Chart 10 – Transaction Volume by Hour of Day vs Transaction Type (Heatmap)
# Developed with AI Assistance to demonstrate LightningChart Python

import lightningchart as lc
import pandas as pd
import numpy as np

# License
with open("D:/HAMK/Internship/MyProjects/lc_license.txt", "r") as f:
    lc.set_license(f.read().strip())

# Preparation
ftrmd['Date'] = pd.to_datetime(ftrmd['Date'], errors='coerce')
ftrmd['Hour'] = ftrmd['Date'].dt.hour

# Normalize type labels
tmp = ftrmd[['Transaction_Type', 'Hour']].copy()
tmp['TxType'] = tmp['Transaction_Type'].astype(str).str.capitalize()

# (Optional) limit to Top-N types for readability
TOP_N = 6
top_types = tmp['TxType'].value_counts().head(TOP_N).index.tolist()

# Pivot to counts: rows = TxType, cols = Hour (0..23)
pivot = (tmp[tmp['TxType'].isin(top_types)]
         .groupby(['TxType', 'Hour'])
         .size()
         .unstack(fill_value=0)
         .reindex(index=top_types, columns=range(24), fill_value=0))

# Heatmap expects (columns, rows) shape per LC sample -> transpose to (24, n_types)
data_matrix = pivot.to_numpy().T.astype(float)        # shape: (24, n_types)
grid_size_x, grid_size_y = data_matrix.shape          # x = hours, y = types

# Handle degenerate palette edge case
vmin = float(np.nanmin(data_matrix)) if data_matrix.size else 0.0
vmax = float(np.nanmax(data_matrix)) if data_matrix.size else 1.0
if vmin == vmax:
    vmax = vmin + 1.0

# Chart
chart = lc.ChartXY(
    title='Heatmap — Transaction Volume by Hour × Type',
    theme=lc.Themes.Light
)

# Heatmap grid series (per LC sample)
heatmap = chart.add_heatmap_grid_series(
    columns=grid_size_x,
    rows=grid_size_y,
)

# Positioning & interpolation
heatmap.set_start(x=0, y=0)
heatmap.set_end(x=grid_size_x, y=grid_size_y)
heatmap.set_step(x=1, y=1)
heatmap.set_intensity_interpolation(True)
heatmap.invalidate_intensity_values(data_matrix.tolist())
heatmap.hide_wireframe()

# Custom palette based on quantiles (low→high volume)
custom_palette = [
    {"value": vmin,                        "color": ('blue')},
    {"value": float(np.nanpercentile(data_matrix, 25)), "color": ('cyan')},
    {"value": float(np.nanmedian(data_matrix)),         "color": ('green')},
    {"value": float(np.nanpercentile(data_matrix, 75)), "color": ('yellow')},
    {"value": vmax,                        "color": ('red')},
]
heatmap.set_palette_coloring(
    steps=custom_palette,
    look_up_property='value',
    interpolate=True
)

# Axes titles
x_axis = chart.get_default_x_axis()
y_axis = chart.get_default_y_axis()
x_axis.set_title('Hour of Day (0–23)')
y_axis.set_title('Transaction Type')

# Show full grid
x_axis.set_interval(0, grid_size_x, False)
y_axis.set_interval(0, grid_size_y, False)

# Custom ticks
# X: label every 2 hours to avoid clutter (use every 1 if you prefer)
x_axis.set_tick_strategy('Empty')
_xticks_refs = []
for h in range(0, 24, 2):
    t = x_axis.add_custom_tick().set_value(h + 0.5).set_text(str(h))
    _xticks_refs.append(t)

# Y: label each transaction type centered on its row
y_axis.set_tick_strategy('Empty')
_yticks_refs = []
for i, tx in enumerate(top_types):
    t = y_axis.add_custom_tick().set_value(i + 0.5).set_text(str(tx))
    _yticks_refs.append(t)

# Legend
chart.add_legend(data=heatmap).set_title('Volume')

chart.open()
